Brand Name : ShiTan
Model Number : GK200
Certification : ISO9001
Place of Origin : China
MOQ : Negotiation
Price : Negotiation
Payment Terms : L/C, D/A, T/T, Western Union
Delivery Time : Within 5-7 days
Supply Ability : set
Packaging Details : Wooden box
Type : Core Drilling Rig
Power Type : Diesel
Usage : Coal, Oil
Voltage : 380V
Dimension(L*W*H) : 1433*697*1233mm

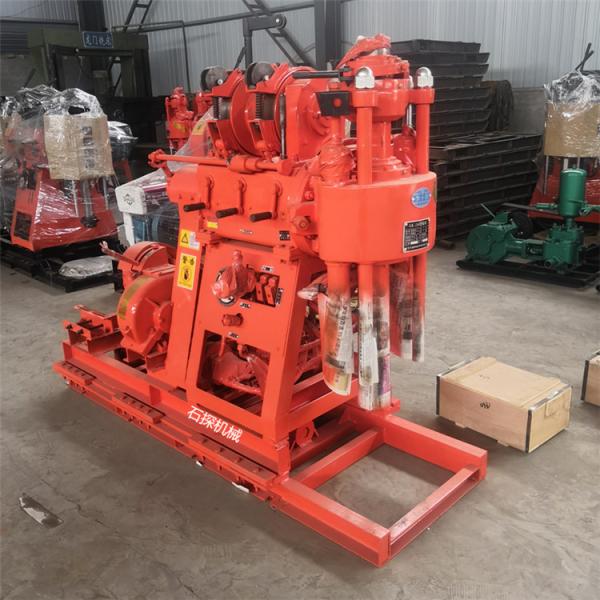

GK200 Hydraulic Portable 200m Water Well Drilling Machine
A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
GK200 Hydraulic Portable 200m Water Well Drilling Machine
Drilling depth | 200m |
Open hole diameter | 75-300mm |
End hole diameter | 75mm |
Active drill rod | 53/59*4200mm |
Rod diameter | 50,60mm |
Drill angle | 90°-75° |
Matched power(diesel power) | 15kw/2200r/min |
Dimension | 2800*950*1700mm |
![]() |
